MIRACLE is an ISO9001:2015 certified manufacturer of fluoropolymer materials, specializing in the research, development, and production of PFA, PVDF, and PTFE products. We possess customized processing capabilities and serve customers across multiple industries.
Fluoropolymer fittings are high-performance pipe fittings that can be ordered in bulk and customized, used for the safe connection of fluids, gases, and chemical media.
High-Performance Materials
Made from PFA, PTFE, or PVDF, these fittings resist chemicals and high temperatures for long-term use.
Precision Manufacturing
Outer diameter and wall thickness tolerances of ±0.05–0.2mm ensure consistent quality for bulk installations.
Customizable Dimensions
PFA tube fittings, PTFE threaded fittings, and PVDF union fittings can be made to OEM or custom specifications.
Chemical and Media Resistance
Handles acids, bases, solvents, gases, and high-purity fluids, reducing replacement frequency.
Features: Suitable for high-purity liquids and corrosive chemical systems
Features: Used for liquid, gas, and signal system connections.
Features: Receives male connectors, creating a highly reliable seal, suitable for high-purity fluid transfer and chemical systems.

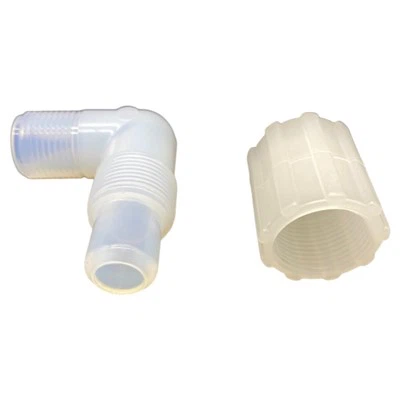

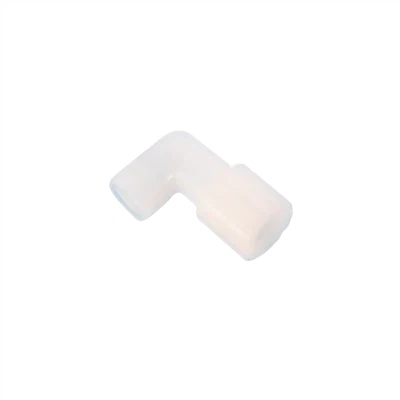

Features: Changes pipe direction, achieving 90° or specific angle connections, suitable for space-constrained piping.

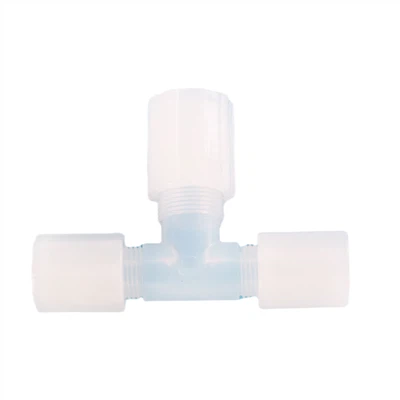

Features: Can divert pipelines or change pipe diameters, meeting the requirements of complex piping layouts.
|
Style NO. |
X |
Y |
Z |
Oriice |
A |
B1 |
B2 |
C |
D |
|
JUTR-141-381-141-1 |
1/4 |
3/8 |
1/4 |
0.15 |
3.32 |
1.47 |
1.47 |
1.53 |
176 |
|
JUTR-141-121-141-1 |
1/4 |
1/2 |
1/4 |
0.15 |
3.32 |
1.47 |
1.47 |
1.65 |
187 |
|
JUTR-381-141-141-1 |
3/8 |
1/4 |
1/4 |
0.15 |
3.42 |
1.53 |
1.47 |
1.47 |
1.68 |
|
JUTR-381-141-381-1 |
3/8 |
1/4 |
3/8 |
0.15 |
3.52 |
1.53 |
1.53 |
1.47 |
1.68 |
|
JUTR-381-381-141-1 |
3/8 |
3/8 |
1/4 |
0.15 |
3.42 |
1.53 |
1.47 |
1.53 |
1.76 |
|
JUTR-381-121-381-1 |
3/8 |
1/2 |
3/8 |
0.25 |
3.52 |
1.53 |
1.53 |
1.65 |
187 |
|
JUTR-381-341-381-1 |
3/8 |
3/4 |
3/8 |
0.25 |
3.52 |
1,53 |
1.53 |
1.98 |
223 |
|
JUTR-121-141-141-1 |
1/2 |
1/4 |
1/4 |
0.15 |
3.53 |
1.65 |
1.47 |
1.47 |
1.66 |
|
JUTR-121-141-381-1 |
1/2 |
1/4 |
3/8 |
0.15 |
3.63 |
1.65 |
1.53 |
147 |
1.66 |
|
JUTR-121-141-121-1 |
1/2 |
1/4 |
1/2 |
0.15 |
3.74 |
1.65 |
1.65 |
1.47 |
1.66 |
|
JUTR-121-381-381-1 |
1/2 |
3/8 |
3/8 |
0.25 |
3.63 |
1.65 |
1.53 |
1.53 |
1.76 |
|
JUTR-121-381-121-1 |
1/2 |
3/8 |
1/2 |
0.25 |
3.74 |
1.65 |
1.65 |
153 |
176 |
|
JUTR-121-121-141-1 |
1/2 |
1/2 |
1/4 |
0.15 |
3.53 |
1.65 |
1.47 |
1.65 |
1.87 |
|
JUTR-121-121-381-1 |
1/2 |
1/2 |
3/8 |
0.38 |
3.63 |
1.65 |
1.53 |
1.65 |
1.87 |
|
JUTR-121-341-121-1 |
1/2 |
3/4 |
1/2 |
0.38 |
3.72 |
1.66 |
1.65 |
1.99 |
2.22 |
|
Customization Aspect |
Description |
|
Dimensions and Specifications |
The inner diameter, outer diameter, and wall thickness of the tubing can be customized according to system interface and flow rate requirements. |
|
Length and Form |
Fluoropolymer tubing can be customized as straight tubes or coiled tubing, and cut to specified lengths. |
|
Color and Transparency |
Natural, transparent, or colored tubing can be customized according to media differentiation or observation requirements. |
|
Surface Marking |
The tubing surface can be customized with printing or markings. |
We're professional tube fitting manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to wholesale high-grade tube fitting for sale here from our factory.
