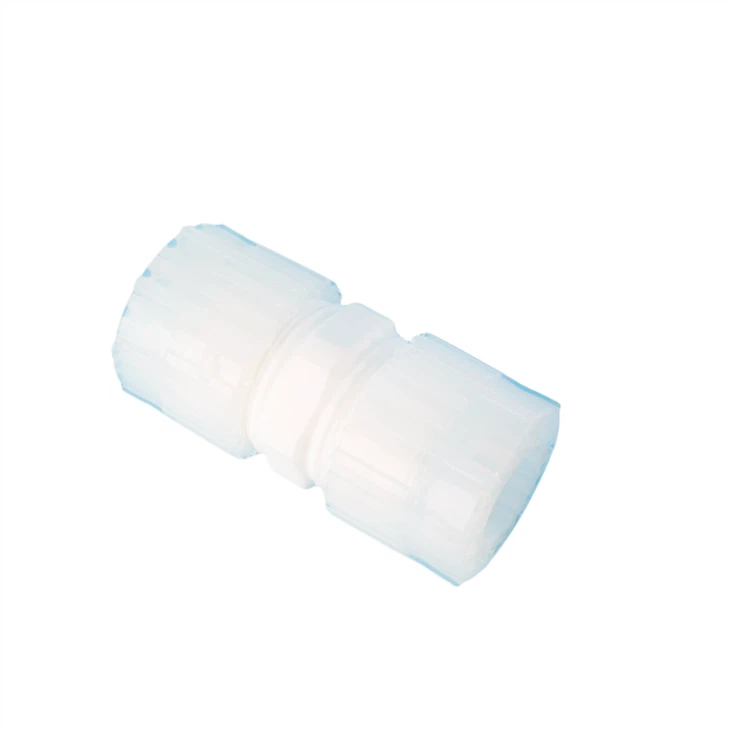

Straight Union
Professional application in high purity semiconductor industry, also suitable for ultra-pure water or corrosive chemicals,between-40℃ to 200℃ can maintain good dimensional stability and corrosion resistance,and has good mechanical characteristics,wear resistance.
Product Introduction
Characteristcs: Professional application in high purity semiconductor industry, also suitable for ultra-pure water or corrosive chemicals,between-40℃ to 200℃ can maintain good dimensional stability and corrosion resistance,and has good mechanical characteristics,wear resistance.
Material :PFA,PTFE,PVDF TYPE:flare type
Maximum operating temperature:200℃
Maximum operating pressure:0.7MPa
Transmission medium:liquid
Tips：PFAand PVDF materials are available for nuts
Product Parameter
| Style No. | Tube OD | Orifice | A | B | Hex |
| JSU-14I-1 | 1/4" | 0.15 | 2.62 | 0.97 | 11/16 |
| JSU-38I-1 | 3/8" | 0.25 | 2.83 | 1.04 | 13/16 |
| JSU-12I-1 | 1/2" | 0.38 | 3.02 | 1.14 | 15/16 |
| JSU-34I-1 | 3/4" | 0.63 | 3.32 | 1.29 | 1-3/16 |
| JSU-1I-1 | 1" | 0.88 | 3.72 | 1.46 | 1-7/16 |
Feature
PFA tubing is engineered for demanding applications in the high-purity semiconductor sector, including ultra-pure water and aggressive chemical systems. Its key properties between -40 ℃ and 200 ℃ include:
• Excellent dimensional stability
• Superior corrosion resistance
• High mechanical strength and wear resistance
