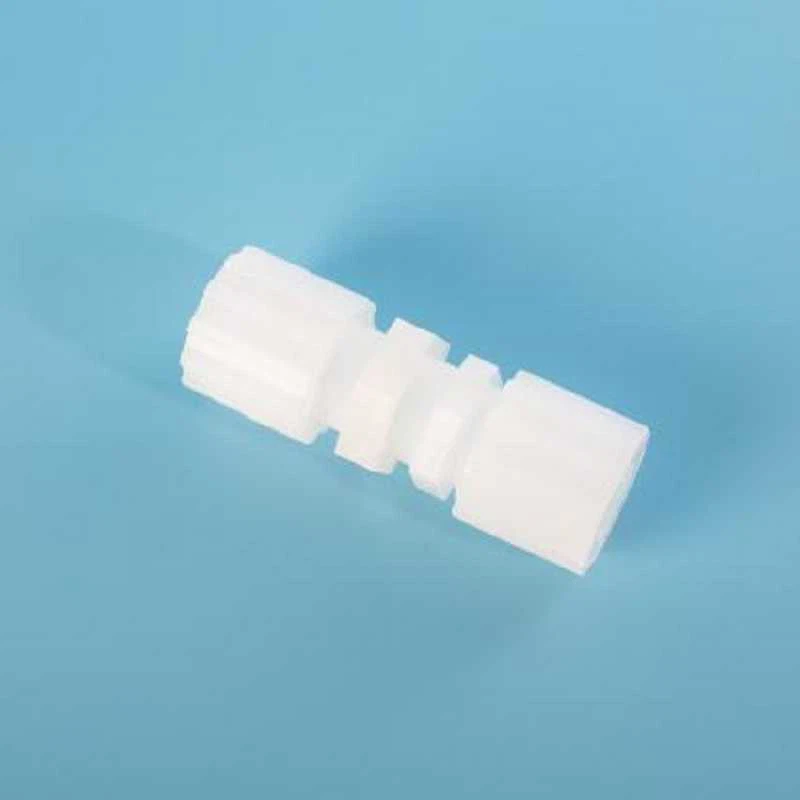

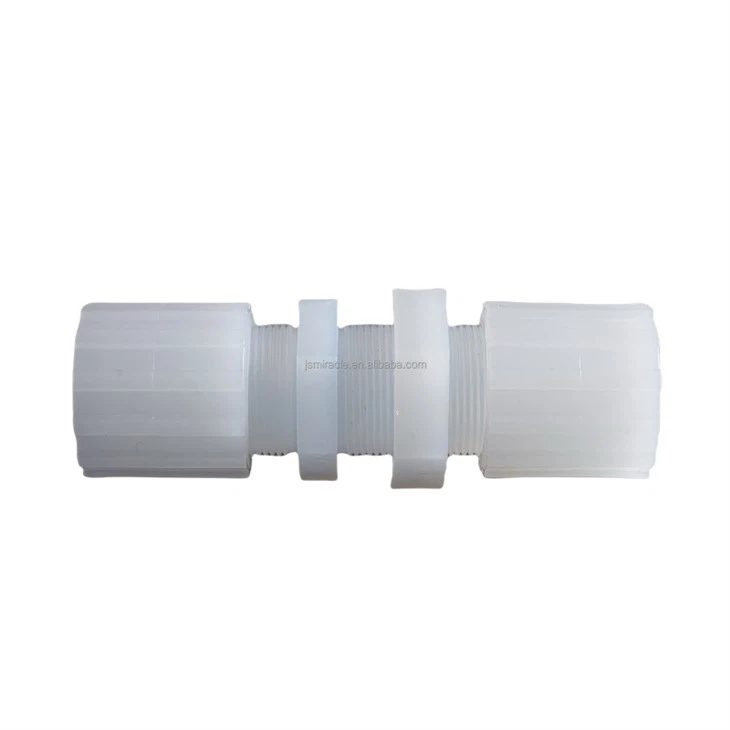

Straight Union Panel Mount
Characteristics:Professional application in high-purity semicon- ductor industry,also suitable for ultrapure water or corrosion Sexual chemicals that maintain good dimensional stability between -40℃and 200℃
Corrosion resistance,with good mechanical characteristicsand wear resistance Material: PFA,PTFE,PVDF
Interface form:flared connection
Maximum operatingtemperature:200℃ Maximum operating pressure:0.7MPa
Transmission medium:liquid
'The nuts are available in PFAand PVDF materials
Product Introduction
The Straight Union Panel Mount is a panel straight connector specifically designed for high-purity semiconductor, ultrapure water, and highly corrosive chemical systems.
Products advantages
Corrosion Resistant
Made of PFA, PTFE, and PVDF materials, verified by ASTM D543 standard, providing long-term resistance to acids, alkalis, organic solvents, and ultrapure water.
Wide Temperature Range
Supports operation from -40℃ to 200℃, with minimal impact from thermal expansion and a tight, leak-proof interface.
Quick Installation
Flanged interface design for quick installation, compatible with standard panel hole diameters.
Customizable Options
Material Selection: PFA / PTFE / PVDF
Connection Type: Flared or custom connection method
Size Specifications: Customizable according to pipe diameter, panel thickness, and flow requirements
Pressure Rating: Rated pressure 0.7MPa, higher pressure ratings available upon request.
Product Parameter

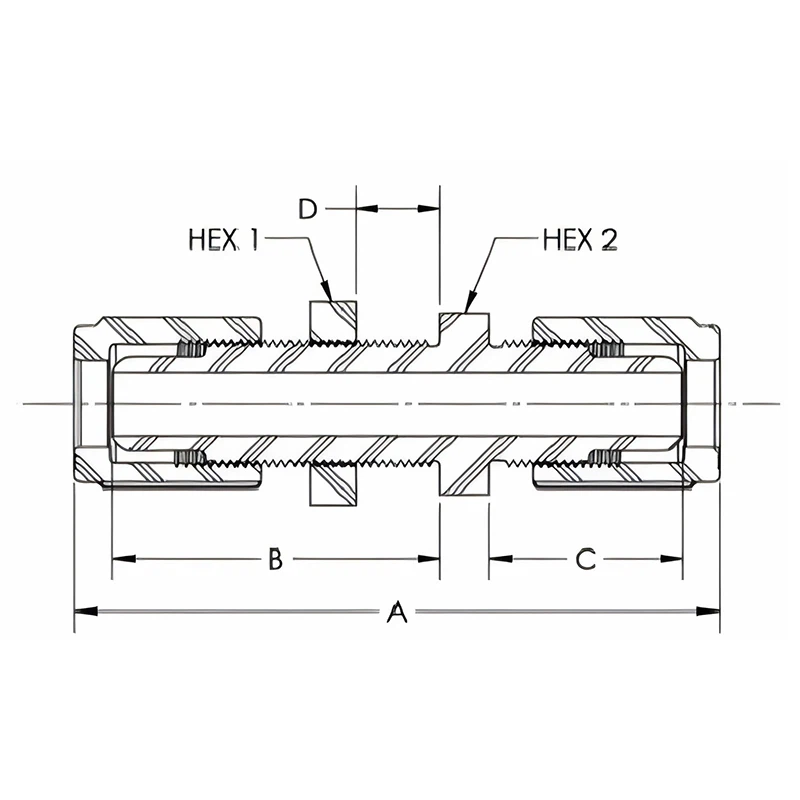

| Style No. | Tube OD | A | B | C | D | Hex1 | Hex2 | Minimu m Panel Hole Diameter |
| JSUPM-14I-1 | 1/4" | 3.4 | 1.73 | 0.97 | 0.5 | 3/4 | 11/16 | 1/2 |
| JSUPM-38I-1 | 3/8" | 3.58 | 1.83 | 1.04 | 0.5 | 15/16 | 13/16 | 5/8 |
| JSUPM-12I-1 | 1/2" | 3.8 | 1.94 | 1.14 | 0.5 | 1-1/16 | 15/16 | 3/4 |
| JSUPM-34I-1 | 3/4" | 4.11 | 2.06 | 1.29 | 0.5 | 1-5/16 | 1-3/16 | 1 |
| JSUPM-1I-1 | 1" | 4.53 | 2.21 | 1.46 | 0.5 | 1-3/4 | 1-5/8 | 1-7/16 |
why choose us
Advanced Equipment: Utilizes fully automated extrusion, molding, sintering, and testing equipment.
Reliable Quality: ISO9001:2015/2016 certified, with a 99.8% product qualification rate.
Select Materials: Raw materials sourced from international brands such as DuPont, Dongyue, and Daikin.
Efficient Delivery: Our in-house warehousing and logistics system ensures ample inventory and stable delivery times.
Customer Trust: Our products are exported to markets including Europe, America, Japan, South Korea, and Southeast Asia.
