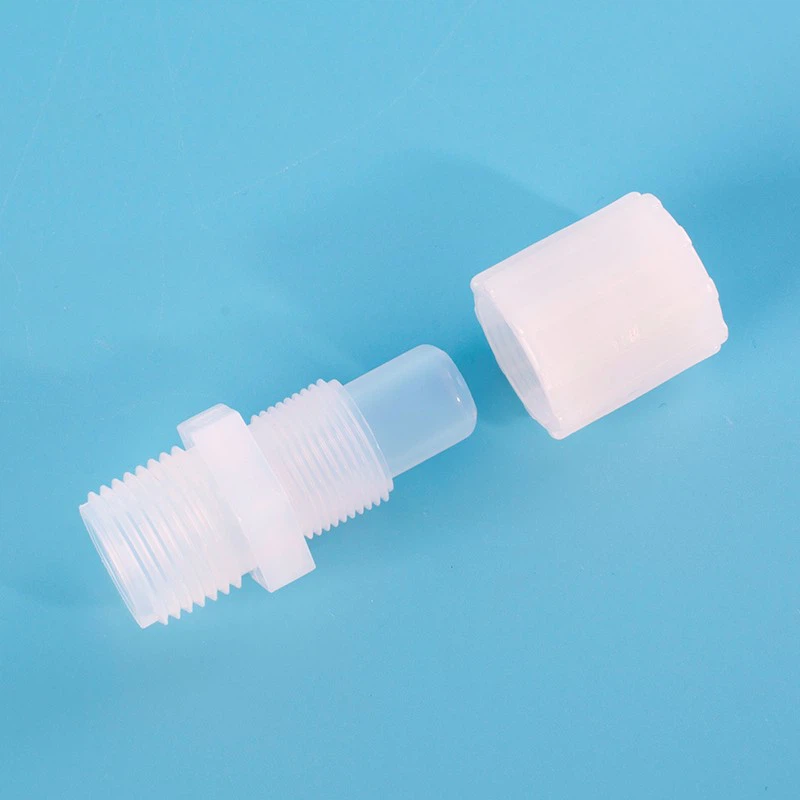

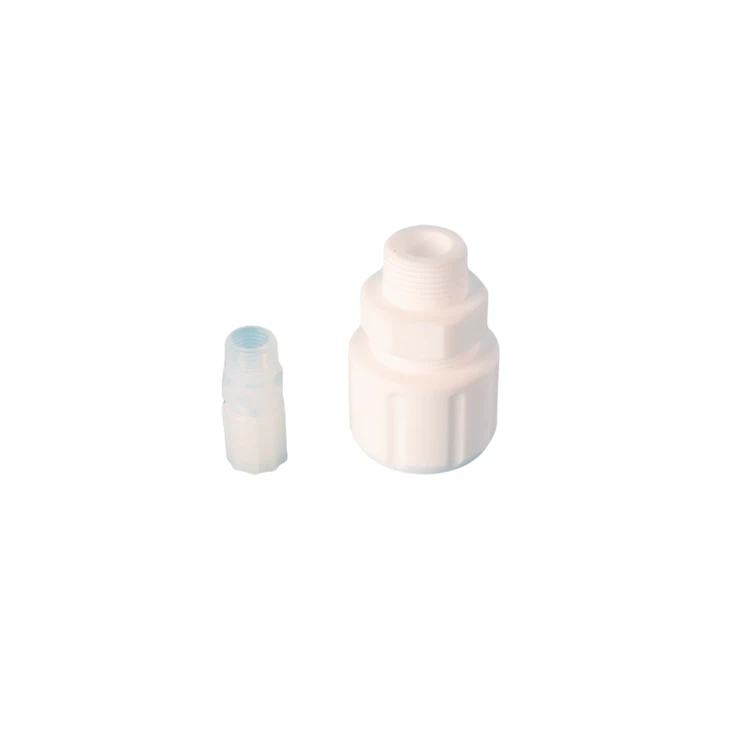

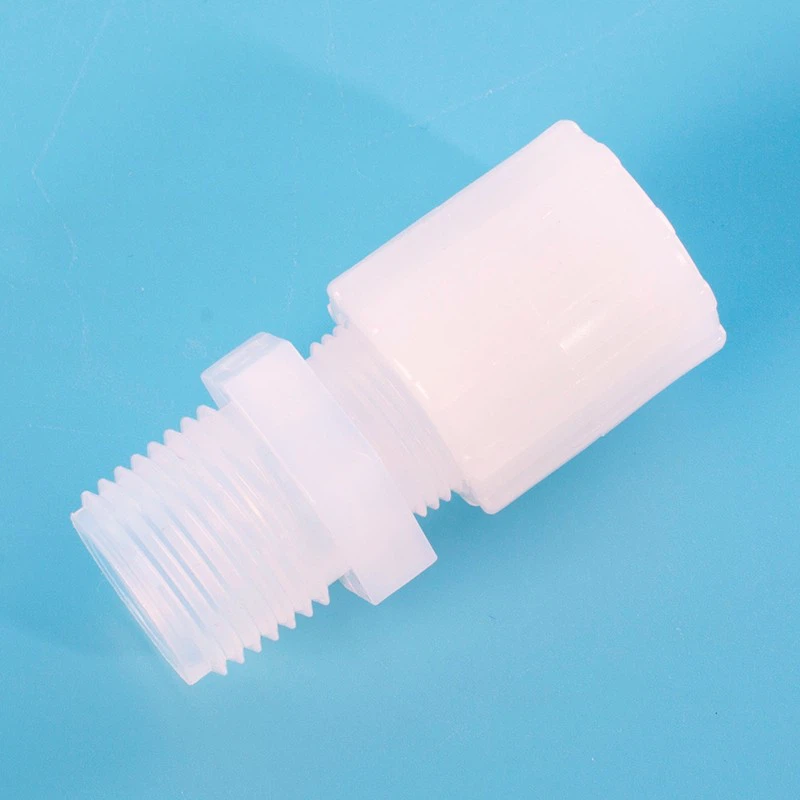

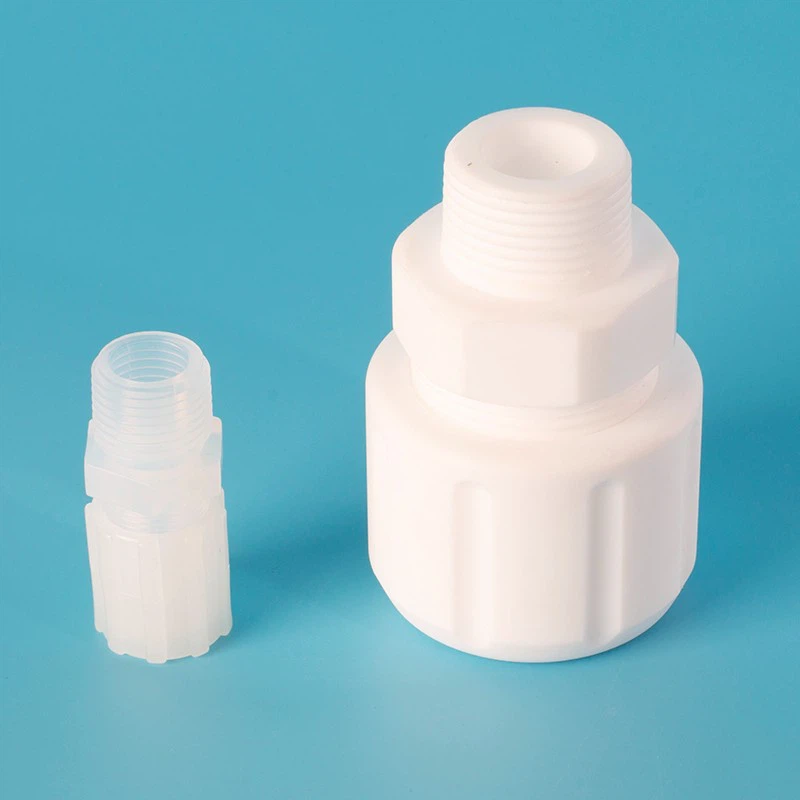

Male Connector
Product Introduction
Product Parameter

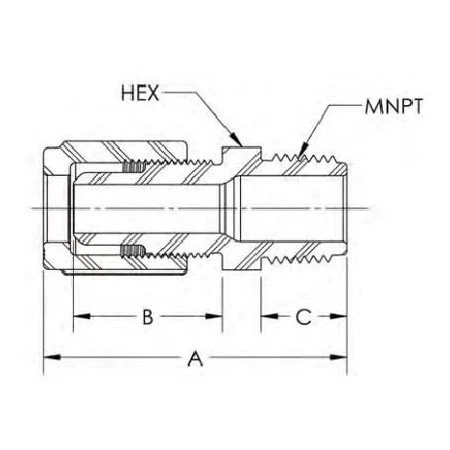

| Style No. | Tube OD | MNPT Size | Orifice | A | B | C | Hex |
| JMC-141-18N-1 | 1/4" | 1/8 | 0.15 | 1.91 | 0.97 | 0.45 | 5/8 |
| JMC-141-14N-1 | 1/4" | 1/4 | 0.15 | 2 | 0.97 | 0.55 | 5/8 |
| JMC-14l-38N-1 | 1/4" | 3/8 | 0.15 | 2 | 0.97 | 0.55 | 11/16 |
| JMC-141-12N-1 | 1/4" | 1/2 | 0.15 | 2.12 | 0.97 | 0.66 | 13/16 |
| JMC-141-34N-1 | 1/4" | 3/4 | 0.15 | 2.12 | 0.97 | 0.67 | 1-3/16 |
| JMC-141-1N-1 | 1/4" | 1 | 0.15 | 2.32 | 0.97 | 0.85 | 1-7/16 |
| JMC-381-18N-1 | 3/8" | 1/8 | 0.18 | 2.09 | 1.04 | 0.55 | 13/16 |
| JMC-381-14N-1 | 3/8" | 1/4 | 0.25 | 2.11 | 1.04 | 0.55 | 13/16 |
| JMC-381-38N-1 | 3/8" | 3/8 | 0.25 | 2.11 | 1.04 | 0.55 | 13/16 |
| JMC-381-12N-1 | 3/8" | 1/2 | 0.25 | 2.21 | 1.04 | 0.66 | 15/16 |
| JMC-38l-34N-1 | 3/8" | 3/4 | 0.25 | 2.22 | 1.04 | 0.66 | 1-3/16 |
| JMC-381-1N-1 | 3/8" | 1 | 0.25 | 2.39 | 1.04 | 0.85 | 1-7/16 |
| JMC-121-18N-1 | 1/2" | 1/8 | 0.18 | 2.2 | 1.14 | 0.54 | 15/16 |
| JMC-121-18N-1 | 1/2" | 1/4 | 0.38 | 2.2 | 1.14 | 0.55 | 15/16 |
| JMC-12I-38N-1 | 1/2" | 3/8 | 0.38 | 2.2 | 1.14 | 0.55 | 15/16 |
| JMC-121-12N-1 | 1/2" | 1/2 | 0.38 | 2.32 | 1.14 | 0.66 | 15/16 |
| JMC-12I-34N-1 | 1/2" | 3/4 | 0.38 | 2.32 | 1.14 | 0.66 | 1-3/16 |
| JMC-121-1N-1 | 1/2" | 1 | 0.38 | 2.51 | 1.14 | 0.86 | 1-7/16 |
| JMC-34l-38N-1 | 3/4" | 3/8 | 0.38 | 2.37 | 1.29 | 0.56 | 15/16 |
| JMC-341-12N-1 | 3/4" | 1/2 | 0.38 | 2.48 | 1.29 | 0.67 | 1-3/16 |
| JMC-341-34N-1 | 3/4" | 3/4 | 0.51 | 2.48 | 1.29 | 0.67 | 1-3/16 |
| JMC-341-1N-1 | 3/4" | 1 | 0.63 | 2.66 | 1.29 | 0.85 | 1-7/16 |
| IMC-11-12N-1 | 1 | 1/2 | 0.51 | 2.69 | 1.46 | 0.67 | 1-7/16 |
| IMC-11-34N-1 | 1 | 3/4 | 0.66 | 2.69 | 1.46 | 0.67 | 1-7/16 |
| JMC-11-1N-1 | 1 | 1 | 0.88 | 2.88 | 1.46 | 0.86 | 1-7/16 |
