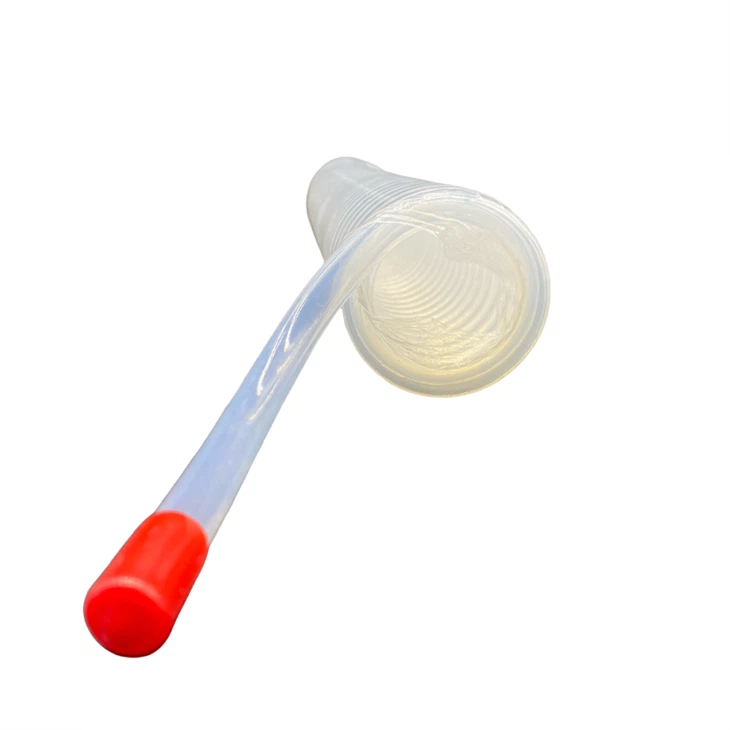

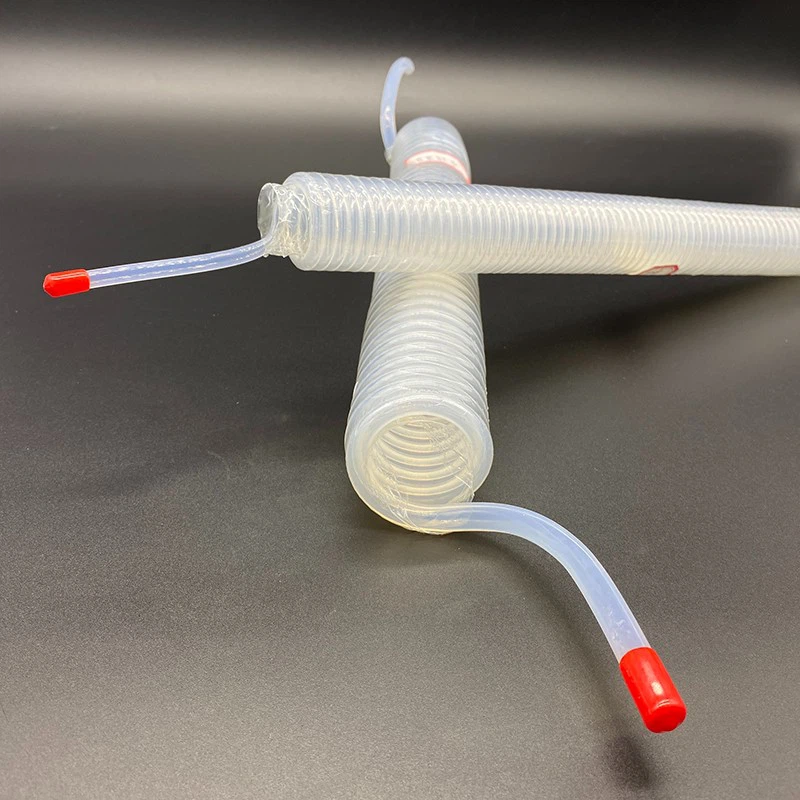

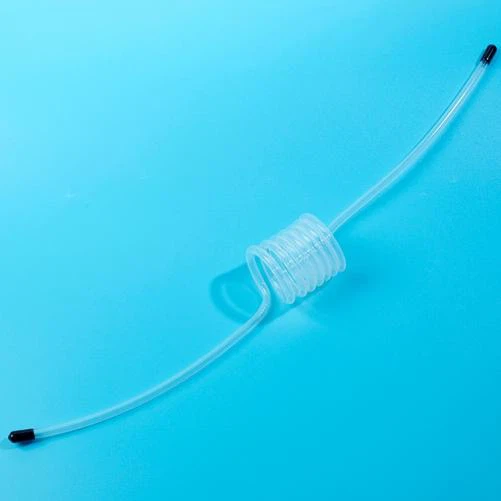

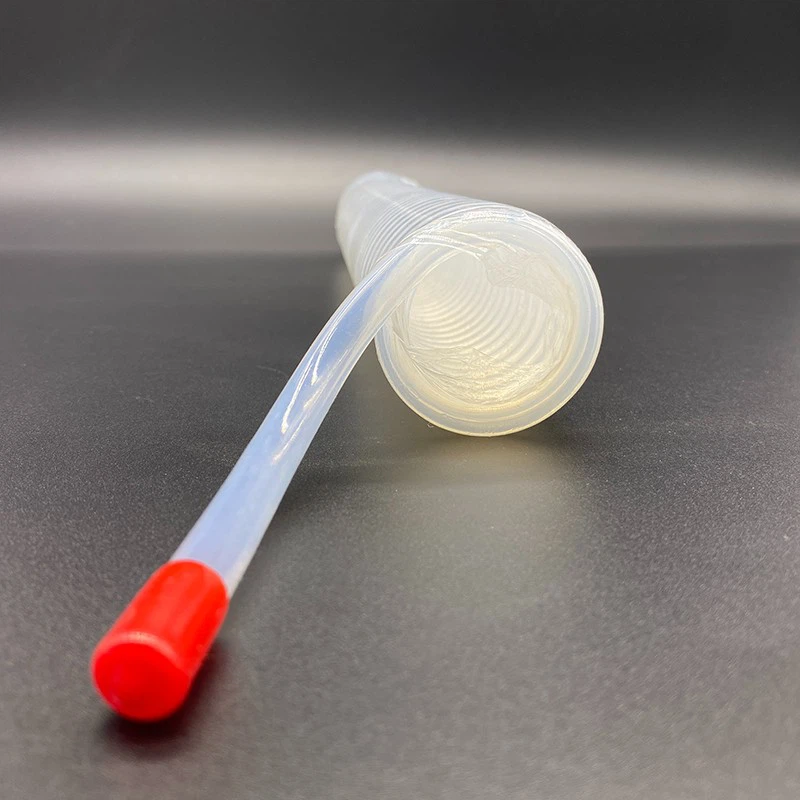

PFA Spiral Coil Tubing
Customized according to customer requirements
Product Introduction
PFA spiral coils are made of high-purity PFA material and feature a spiral structure design. They are widely used in laboratories, pharmaceuticals, semiconductors, and for conveying precision chemical liquids.
Products advantages
Chemically Resistant
High-purity PFA material, stable against acids, alkalis, and oxidants, ensuring liquid purity and meeting USP Class VI and FDA standards.
High Elasticity and Resilience
The spiral coil structure and thermoforming process ensure no deformation even after repeated bending, adapting to complex piping environments and extending service life.
Low Friction
The smooth inner wall reduces fluid resistance and does not adsorb substances, ensuring stable delivery of high-purity liquids.
Customizable Options
Pipe Diameter: Inner/Outer Diameter Customizable
Length: Coil or Full Pipe Length
Helix Pitch: Customizable based on flexibility and installation requirements
Connection Type: Quick Connect/Threaded/Flanged

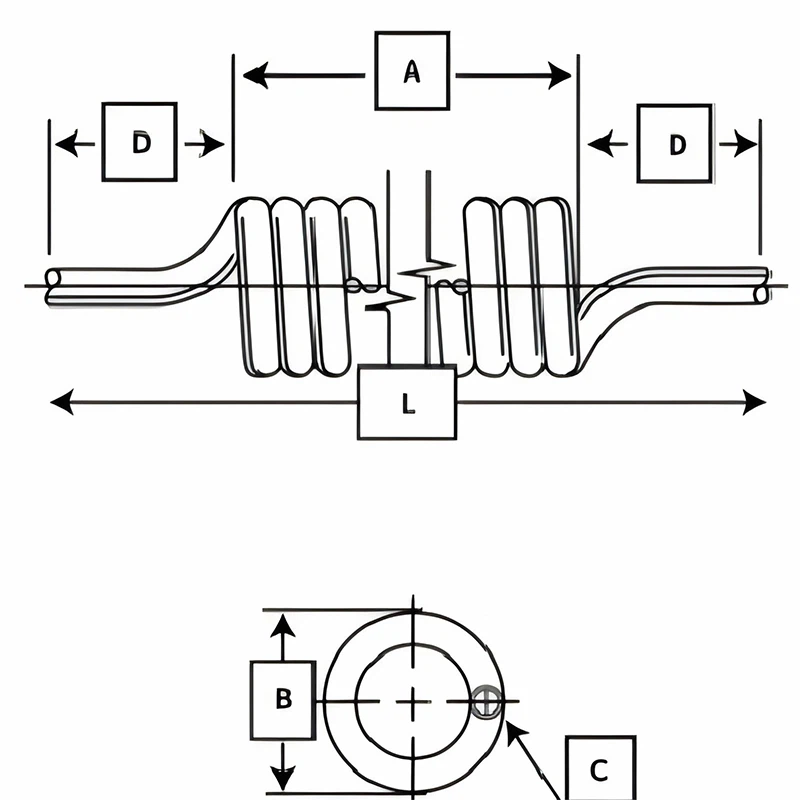

Product Parameter
| Outer diameter of straight pipe | Maximum diameter of spiral | Spiral tube length | Minimum length of straight pipe | Length |
| 1/4" | 32 | 800 | 100 | 1000 |
| 3/8" | 46 | 800 | 100 | 1000 |
| 1/2" | 85 | 800 | 100 | 1000 |
| Tips: Customized according to customer requirements | ||||
why choose us
Advanced Equipment: Utilizes fully automated extrusion, molding, sintering, and testing equipment.
Reliable Quality: ISO9001:2015/2016 certified, with a 99.8% product qualification rate.
Select Materials: Raw materials sourced from international brands such as DuPont, Dongyue, and Daikin.
Efficient Delivery: Our in-house warehousing and logistics system ensures ample inventory and stable delivery times.
Customer Trust: Our products are exported to markets including Europe, America, Japan, South Korea, and Southeast Asia.
