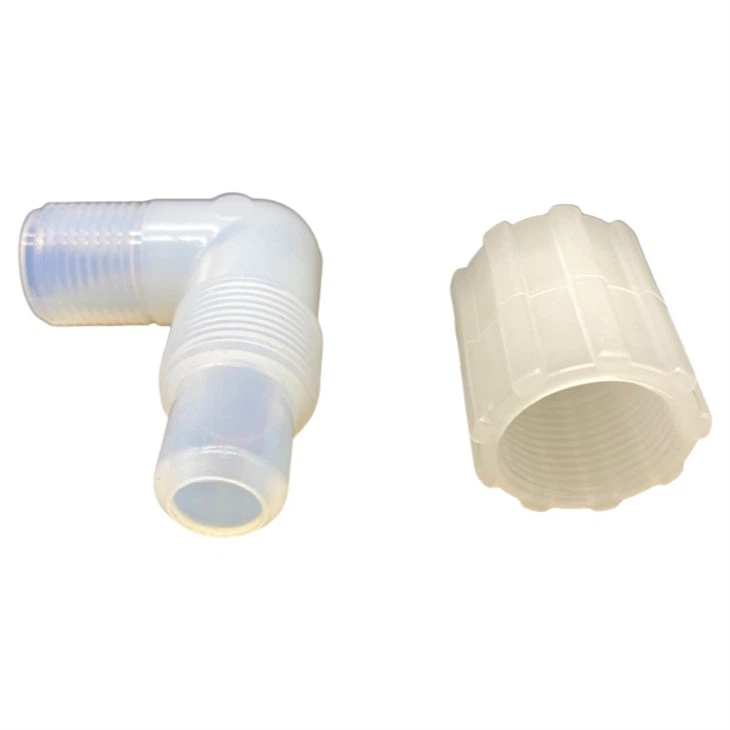

UNion Elbow Reducer
Product Introduction
Union elbow reducers are plastic pipe fittings used to connect pipes of different diameters and achieve 90° turns. They are commonly used for chemical liquid transportation, pure water systems, and laboratory equipment piping.
Product advantages
High Precision
Using CNC precision-machined molds and automated injection molding technology, thread accuracy can reach ±0.05mm.
Corrosion-Resistant
Made of PFA material, it can withstand acids and alkalis, ensuring a service life of 3-5 years.
High Pressure Resistance
With a wall thickness of 2.0mm, it can withstand operating pressures exceeding 0.8MPa.

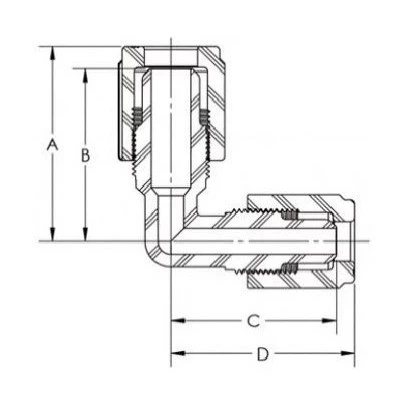

Product Parameter
| Style No. | Tube No. | Tube No. | Orifice | A | B | C | D |
| JUER-38-141-1 | 3/8" | 1/4 | 0.15 | 1.76 | 1.53 | 1.47 | 1.66 |
| JUER-121-141-1 | 1/2" | 1/4 | 0.15 | 1.87 | 1.65 | 1.47 | 1.66 |
| JUER-121-38l-1 | 1/2" | 3/8 | 0.25 | 1.87 | 1.65 | 1.53 | 1.76 |
| JUER-341-141-1 | 3/4" | 1/4 | 0.15 | 2.22 | 1.99 | 1.47 | 1.66 |
| JUER-341-381-1 | 3/4" | 3/8 | 0.25 | 2.22 | 1.99 | 1.53 | 1.76 |
| JUER-341-12I-1 | 3/4" | 1/2 | 0.38 | 2.22 | 1.99 | 1.65 | 1.87 |
| JUER-1-121-1 | 1 | 1/2 | 0.38 | 2.7 | 2.43 | 1.81 | 2.03 |
| JUER-1-341-1 | 1 | 3/4 | 0.38 | 2.7 | 2.43 | 1.99 | 2.22 |
FAQ
Q: What is the maximum temperature resistance of the product?
A: Under standard operating conditions, it can withstand temperatures up to 150°C for extended periods, with short-term peaks reaching 180°C.
Q: Can this product be used in high-purity water or semiconductor processes?
A: Yes, PFA material has an extremely low leaching rate, making it ideal for semiconductor cleaning, optoelectronic manufacturing, and laboratory-grade pure water transportation.
Q: Is the product pressure- or seal-tested?
A: Each batch of products undergoes pressure and seal testing before shipment to ensure 100% compliance.
Q: Do you offer OEM/ODM services?
A: Yes, we do. We can customize products according to customer drawings or samples, and we support branding.
Q: Are your products ISO certified?
A: Our factory is ISO9001 certified.
