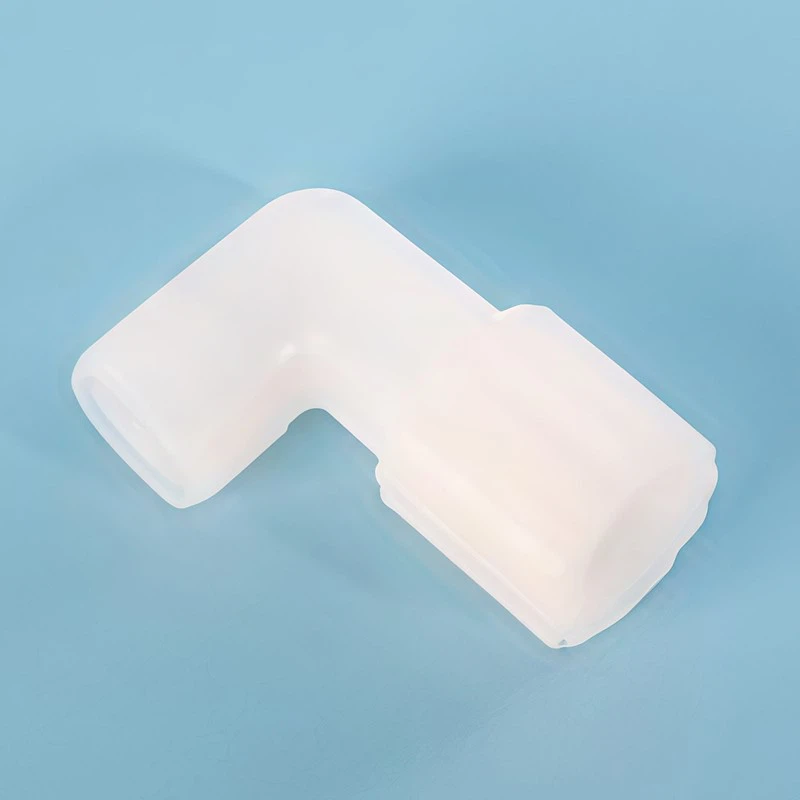

90 Degree Union Elbow
Product Introduction
A 90 degree union elbow is a pipe fitting used to connect two pipelines and achieve a 90° directional change, commonly used in fluid pipelines of pure water systems, chemical liquid delivery, and electronic manufacturing equipment.
Product advantages
High Purity
Utilizing virgin PFA with a purity of 99.9%, it will not contaminate the conveying medium.
High-Pressure Resistance
One-piece injection molding withstands operating pressures up to 0.9 MPa without deformation.
High Precision
Using CNC precision molds and automated injection molding technology, dimensional tolerances are controlled within ±0.05 mm.
Product Parameter
| Style NO. | Tube OD. | Orifice | A | B |
| JUE-141-1 | 1/4 | 0.15 | 1.66 | 1.47 |
| JUE-38l-1 | 3/8 | 0.25 | 1.76 | 1.53 |
| JUE-121-1 | 1/2 | 0.38 | 1.87 | 1.65 |
| JUE-341-1 | 3/4 | 0.63 | 2.22 | 1.99 |
| JUE-11-1 | 1 | 0.87 | 2.70 | 2.43 |
FAQ
Q: What are the common specifications of union elbows?
A: Standard specifications include 1/4", 3/8", 1/2", 3/4", and 1", and we can also customize them to meet customer requirements.
Q: What is the product's temperature resistance range?
A: It can operate stably within a range of -40°C to +140°C.
Q: Are union elbows customizable?
A: We offer a variety of customization options, including size, interface type, color, and packaging.
Q: What is the lead time for custom production?
A: Custom production typically takes 7–15 business days, depending on quantity and specifications.
Q: Do you provide samples?
A: We provide free samples, and customers only cover the shipping costs.
