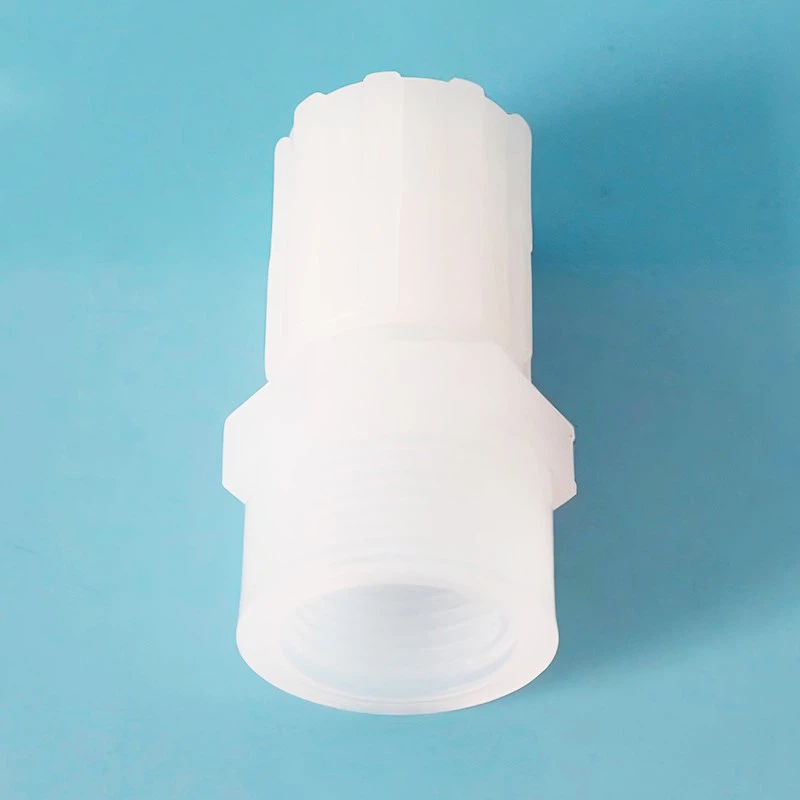

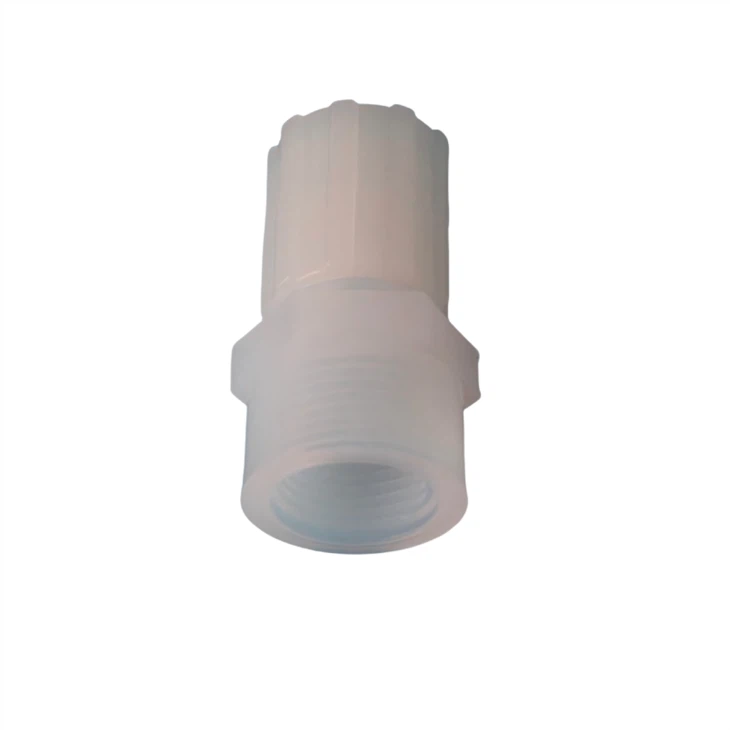

Female Connector
Product Introduction
A female connector is a fitting with internal threads, used for sealing connection with male threaded pipes, and is widely applied in chemical, environmental protection, water treatment, and laboratory equipment fields.
Product advantages
High Pressure Resistance
One-piece injection molded, capable of withstanding 1.2MPa pressure.
High Precision
Produced by fully automatic injection molding, with dimensional tolerance controlled within ±0.05mm.
Corrosion Resistance
Made of high-quality PFA material, not easily corroded by acid or alkali media.
Product Parameter

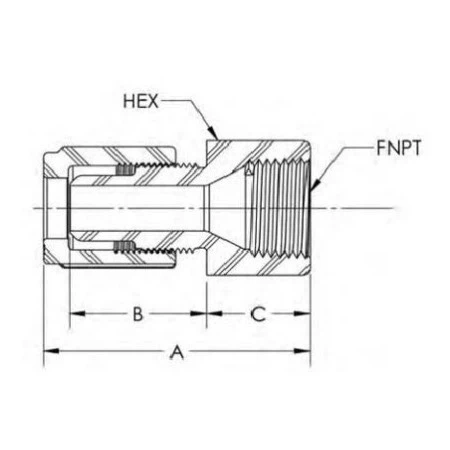

| Style No. | Tube No. | FNPT Size | Orifice | A | B | C | Hex |
| JFC-141-18N-1 | 1/4 | 1/8 | 0.15 | 1.9 | 0.97 | 0.79 | 5/8 |
| JFC-141-14N-1 | 1/4 | 1/4 | 0.15 | 1.99 | 0.97 | 0.84 | 3/4 |
| JFC-141-38N-1 | 1/4 | 3/8 | 0.15 | 2 | 0.97 | 0.92 | 15/16 |
| JFC-141-12N-1 | 1/4 | 1/2 | 0.15 | 2.02 | 0.97 | 0.86 | 1-1/8 |
| JFC-381-18N-1 | 3/8 | 1/8 | 0.25 | 1.78 | 1.04 | 0.74 | 5/8 |
| JFC-381-14N-1 | 3/8 | 1/4 | 0.25 | 2.05 | 1.04 | 0.84 | 3/4 |
| JFC-381-38N-1 | 3/8 | 3/8 | 0.25 | 2.1 | 1.04 | 0.84 | 15/16 |
| JFC-38l-12N-1 | 3/8 | 1/2 | 0.25 | 2.13 | 1.04 | 0.86 | 1-1/8 |
| JFC-121-14N-1 | 1/2 | 1/4 | 0.38 | 2.2 | 1.14 | 0.84 | 3/4 |
| JFC-121-38N-1 | 1/2 | 3/8 | 0.38 | 2.22 | 1.14 | 0.87 | 15/16 |
| JFC-12I-12N-1 | 1/2 | 1/2 | 0.38 | 2.5 | 1.14 | 0.86 | 1-1/8 |
| JFC-121-34N-1 | 1/2 | 3/4 | 0.38 | 2.28 | 1.14 | 0.92 | 1-3/8 |
| JFC-121-1N-1 | 1/2 | 1 | 0.38 | 2.5 | 1.14 | 1.14 | 1-5/8 |
| JFC-341-12N-1 | 3/4 | 1/2 | 0.63 | 2.38 | 1.29 | 0.86 | 1-1/8 |
| JFC-341-34N-1 | 3/4 | 3/4 | 0.63 | 2.44 | 1.29 | 0.92 | 1-3/8 |
| JFC-341-1N-1 | 3/4 | 1 | 0.63 | 2.66 | 1.29 | 1.14 | 1-5/8 |
| JFC-11-1N-1 | 1 | 1 | 0.88 | 2.88 | 1.46 | 1.14 | 1-5/8 |
