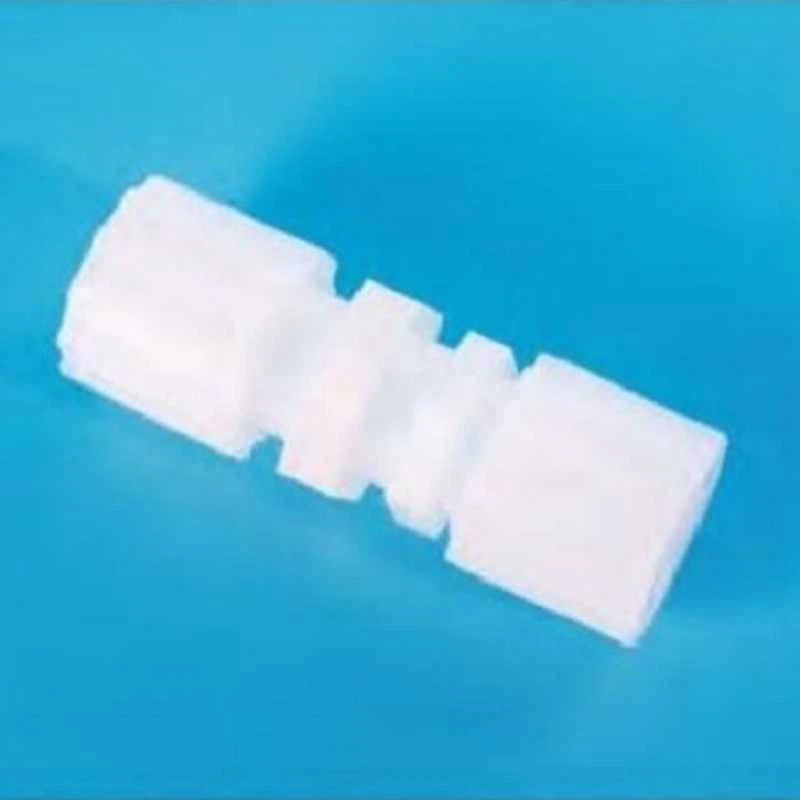

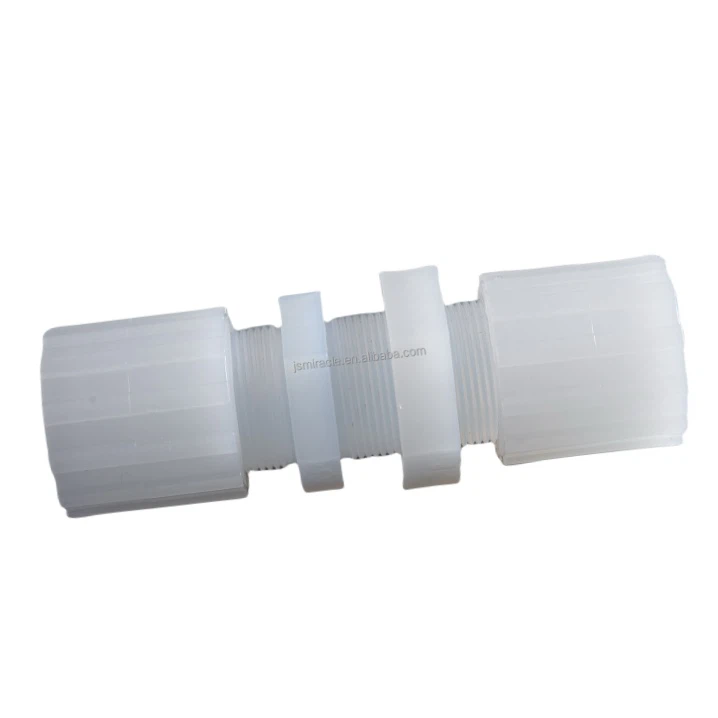

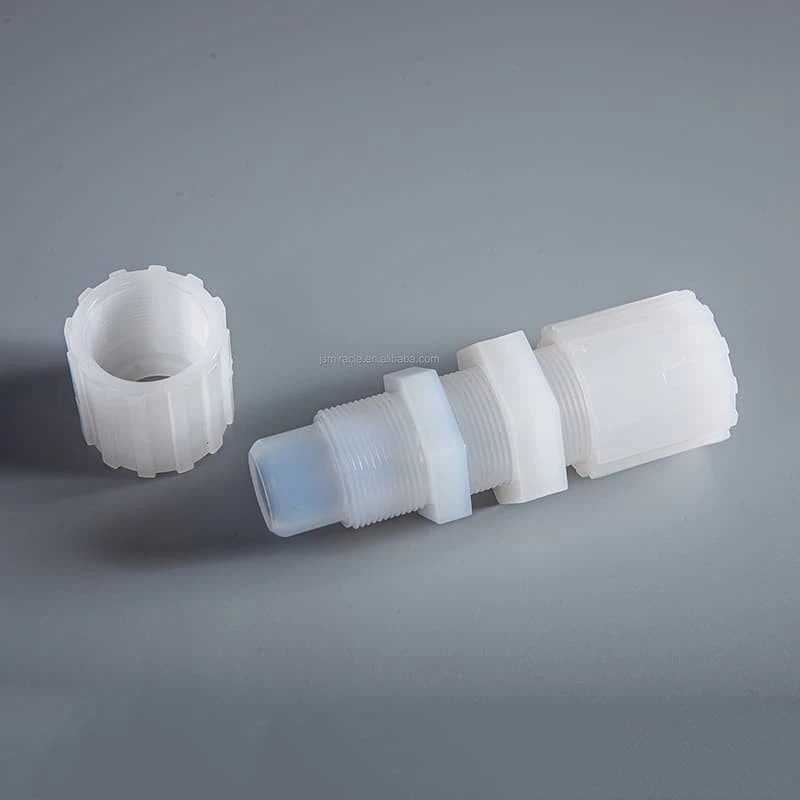

Straight Union Panel Mount Reducer
Product Introduction
The Straight Union Panel Mount Reducer is a high-quality pipe connection assembly designed for connecting pipes of different diameters in piping systems, and is commonly used for liquid and gas fluid transfer.
Products Description
Precision Machining
Utilizing advanced CNC machine tools, the dimensional tolerances of each product are controlled within ±0.05mm, ensuring precise alignment.
High Compatibility
Available in various sizes from 1/4" to 6", conforming to international standards (ANSI, DIN, etc.).
Product Parameter

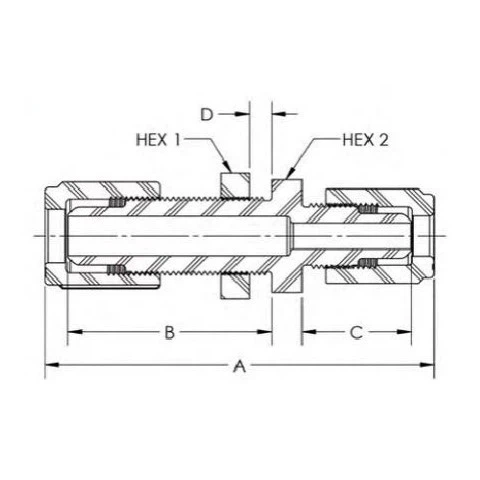

| Style No. | Tube OD | Tube OD | Orifice | A | B | C | D(Max) | Hex1` | Hex2 | Minimu m Panel Hole Diameter |
| JSUPMR-38I-14I-1 | 3/8" | 1/4 | 0.15 | 3.48 | 1.83 | 0.97 | 0.5 | 15/16 | 13/16 | 5/8 |
| JSUPMR-12I-14I-1 | 1/2" | 1/4 | 0.15 | 3.59 | 1.94 | 0.97 | 0.5 | 1-1/16 | 15/16 | 3/4 |
| JSUPMR-12I-38I-1 | 1/2" | 3/8 | 0.25 | 3.7 | 1.94 | 1.04 | 0.5 | 1-1/16 | 15/16 | 3/4 |
| JSUPMR-34I-38I-1 | 3/4" | 3/8 | 0.25 | 3.86 | 2.06 | 1.04 | 0.5 | 1-5/16 | 1-3/16 | 1 |
| JSUPMR-34I-12I-1 | 3/4" | 1/2 | 0.38 | 3.95 | 2.06 | 1.14 | 0.5 | 1-5/16 | 1-3/16 | 1 |
| JSUPMR-1I-34I-1 | 1 | 3/4 | 0.63 | 4.31 | 2.21 | 1.29 | 0.5 | 1-3/4 | 1-5/8 | 1-7/16 |
why choose us
Advanced Equipment: Utilizes fully automated extrusion, molding, sintering, and testing equipment.
Reliable Quality: ISO9001:2015/2016 certified, with a 99.8% product qualification rate.
Select Materials: Raw materials sourced from international brands such as DuPont, Dongyue, and Daikin.
Efficient Delivery: Our in-house warehousing and logistics system ensures ample inventory and stable delivery times.
Customer Trust: Our products are exported to markets including Europe, America, Japan, South Korea, and Southeast Asia
