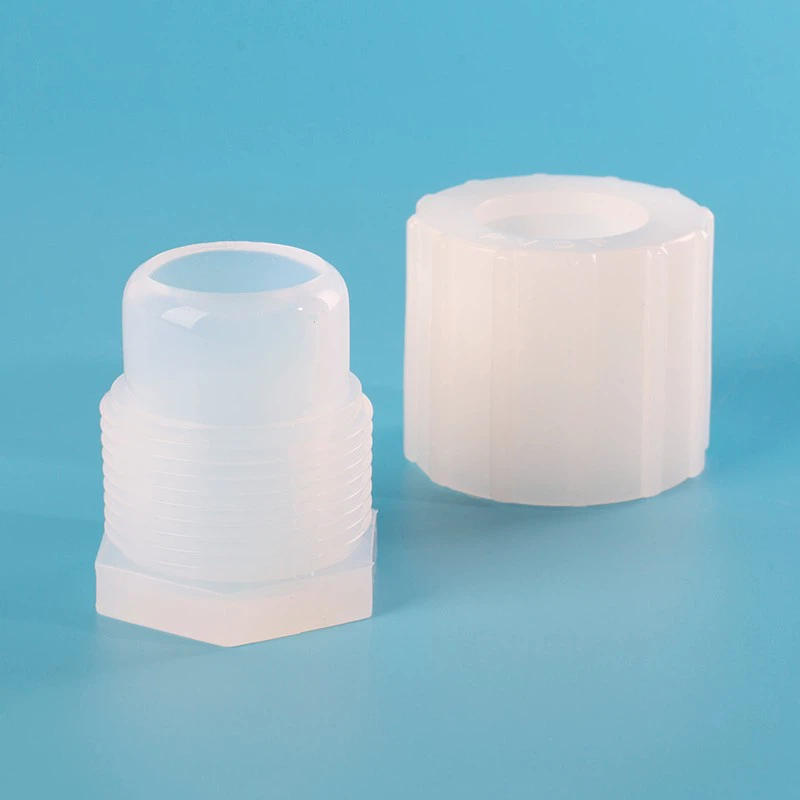

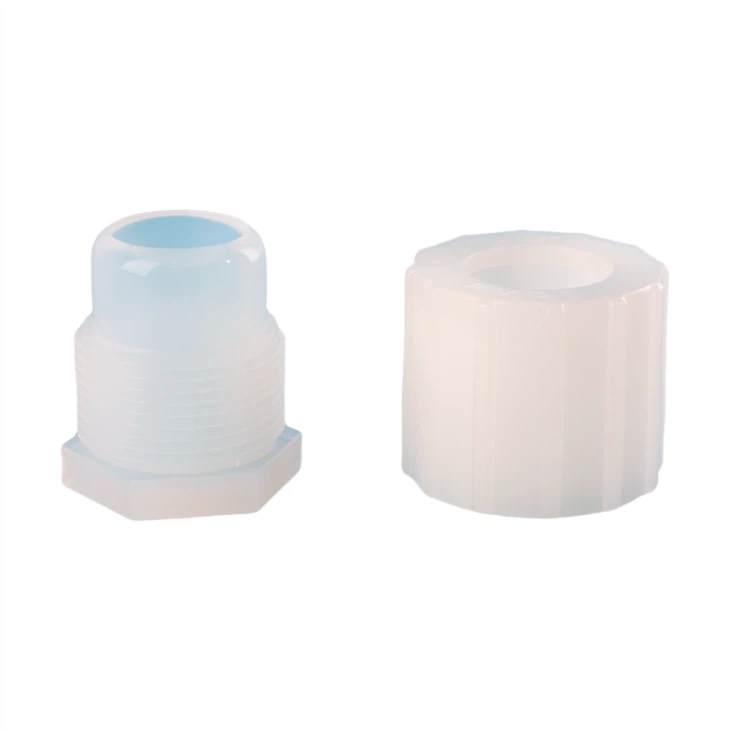

Double Flare Plug
Product Introduction
Flare plug is a connection component specifically designed for fluid pipeline systems in fields such as semiconductors, chemical industry, and biopharmaceuticals.
Product advantages
High Precision
It uses CNC precision molds and automatic injection molding technology, with dimensional deviation controlled within 0.1mm.
Corrosion Resistance
Made from PFA material, it can resist nearly all strong acids, strong bases, and organic solvents' chemical corrosion.
High Purity
Made from 100% pure PFA resin, they contain no fillers or plasticizers, preventing contamination of the media.
Anti-slip Tightening Design
The outer side of the locking nut has vertical ribs, which increase the friction during tightening, making the seal more reliable.
Product Parameter

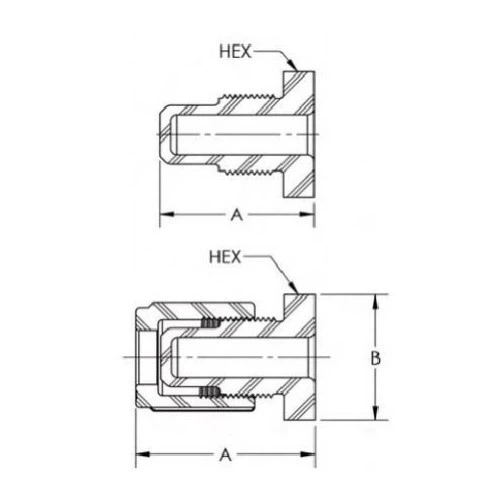

| PFA Flare Plug & Nut Part No. | Tube O.D | A | B | Hex |
| JFP4N-1 | 1/4 | 1.47 | 0.7 | 5/8" |
| JFP6N-1 | 3/8 | 1.57 | 0.92 | 13/16 |
| JFP8N-1 | 1/2 | 1.67 | 1.04 | 15/16 |
| JFP12N-1 | 3/4 | 1.79 | 1.32 | 1-3/16" |
| JFP16N-1 | 1 | 2.01 | 1.60 | 1-7/16" |
| JFP20N-3 | 1-1/4 | 2.63 | 1.96 | 1-3/4" |
FAQ
Q: Can I get a discount on the bell plugs?
A: We offer different discounts based on purchase volume, with larger discounts available for bulk purchases.
Q: How can I order a custom bell plug?
A: Please provide your detailed requirements and dimensions, and we will custom-manufacture them.
Q: Is the quality of our bell plugs guaranteed?
A: Our bell plugs undergo multiple rigorous quality inspections during production, including tests for dimensions, pressure resistance, and corrosion resistance.
Q: What pressure can the bell plugs withstand?
A: Our bell plugs are designed to withstand pressures up to 200 MPa and are suitable for high-pressure piping systems.
Q: Can bell plugs be used on high-temperature water pipes?
A: Our bell plugs can withstand temperatures up to 120°C and are suitable for hot water piping systems.
