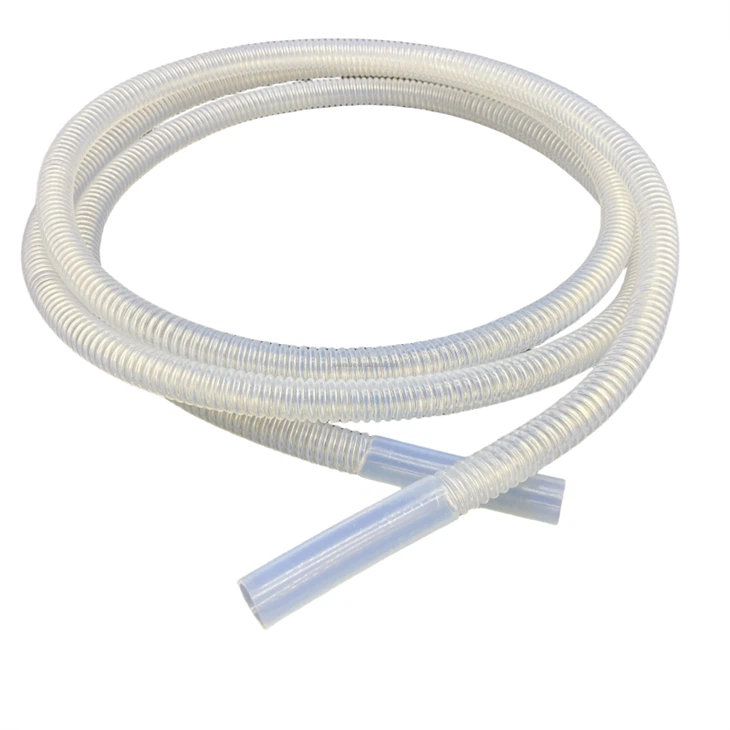

PFA Coil Tube
Product Introduction

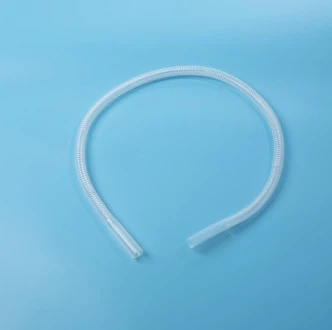

PFA Coil Tube is a high-performance spiral corrugated tube made entirely of PFA material. It is resistant to high temperatures and chemical corrosion, and is widely used in industries such as photovoltaics, aerospace, automotive, pharmaceuticals, and chemicals.
Product Parameter

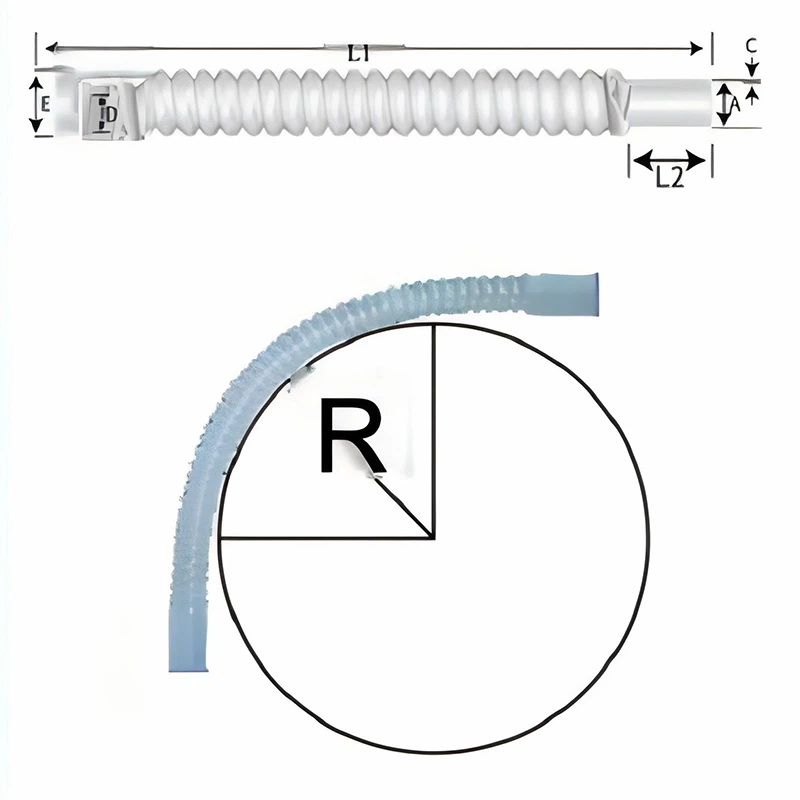

| Waveform section | Straight pipe size | Minimum bend radius | Wall breaking pressure (room temperature) | |||
| Size | Minimum inner diameter | Maximum outer diameter | ID | Inner thickness | ||
| 1/4 | 4.7 | 8 | 5.5 | 0.38 | 12.7 | 1.23 |
| 3/8 | 7.8 | 11.2 | 9.53 | 0.51 | - | 1.1 |
| 1/2 | 10.9 | 14.6 | 12.7 | 0.51 | 31.8 | 0.82 |
| 5/8 | 15.6 | 19.6 | 15.88 | 0.61 | 38.1 | 0.82 |
| 3/4 | 18.2 | 23.1 | 19.05 | 0.64 | 50.8 | 0.69 |
| 1" | 25.1 | 31.2 | 25.4 | 0.76 | 56.5 | 0.62 |
| 1/1/4 | 29.2 | 40.7 | 31.75 | 0.89 | 69.9 | 0.59 |
| 1-1/2 | 35.8 | 48.6 | 38.1 | 1.02 | 76.2 | 0.55 |

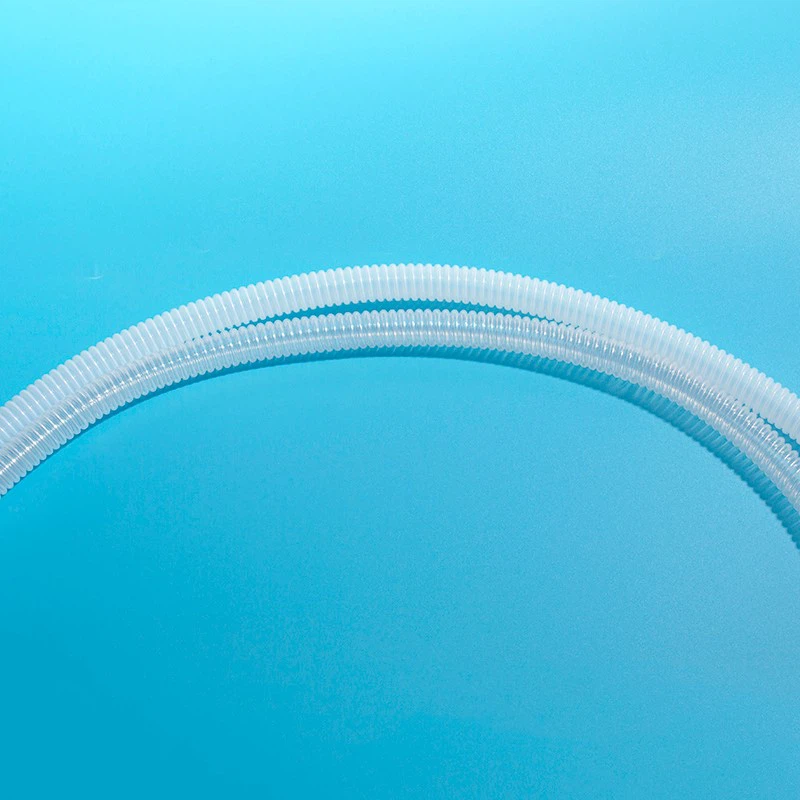

Structure: PC is a PFA corrugated hose with smooth ends and a spiral corrugated middle section.
Operating Temperature: -40°C to +200°C
Applications: Photovoltaics, aerospace, automotive, pharmaceuticals, chemical industry, electrical wires, optical fibers, etc.
Products advantages
Chemical Stability
The pipe is constructed entirely of PFA, resistant to strong acids, strong alkalis, and various organic solvents, and does not react with the fluid.
High Flexibility
The spiral corrugated design allows the pipe to bend, withstand pressure, and is not easily deformed.
Smooth Ends
Both ends are smoothly finished to reduce fluid resistance, ensure stable flow rate, prevent impurity accumulation, and improve conveying efficiency.
why choose us
Advanced Equipment: Utilizes fully automated extrusion, molding, sintering, and testing equipment.
Reliable Quality: ISO9001:2015/2016 certified, with a 99.8% product qualification rate.
Select Materials: Raw materials sourced from international brands such as DuPont, Dongyue, and Daikin.
Efficient Delivery: Our in-house warehousing and logistics system ensures ample inventory and stable delivery times.
Customer Trust: Our products are exported to markets including Europe, America, Japan, South Korea, and Southeast Asia.
